Amp 520SS11HT-16/20

Name: Amp 520SS11HT-16/20
SKU: Amp 520SS11HT-16/20
Price: 36.00 USD
Availability: InStock

$36.00

62 in stock

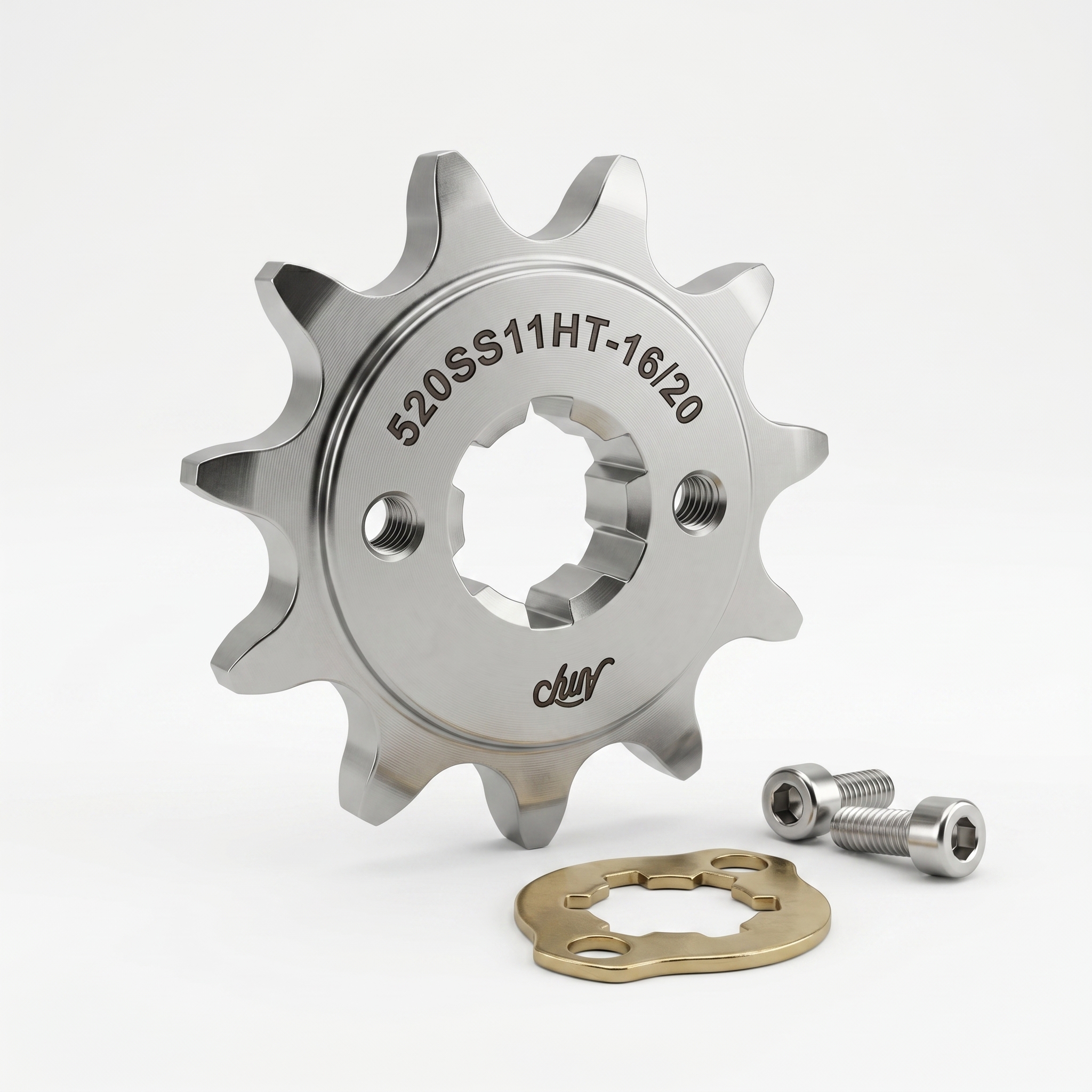

High Torque 520 11T Racing Sprocket

Designed specifically for the QS165 60H v3 gearbox motor with the newer 16/20 mm 6-spline output shaft.

Constructed from hardened steel for maximum durability and engineered for high-power electric motorcycle, kart, and ATV applications.

IMPORTANT FITMENT NOTICE:

This sprocket is engineered for use with QS165 60H v3 motors utilizing the newer 16/20 mm 6-spline output shaft.

Before ordering, please verify that your motor uses the 16/20 mm 6-spline shaft configuration.

The spline profile of this sprocket is as follows:

Widest spline diameter: 20.0mm

Narrowest spline diameter: 16.0mm

Each sprocket includes a retaining plate and mounting hardware.

We test-fit each design to actual QS motors during production to ensure the best possible fitment. Every sprocket is manufactured with strict tolerances and undergoes quality control inspection prior to shipment.

62 in stock

At a glance

Chain size: 520
Tooth count: 11
Bore / interface: 16/20mm Spline

SKU: Amp 520SS11HT-16/20 Category: Sprockets

Description

IMPORTANT FITMENT NOTICE

This sprocket is engineered specifically for use with QS165 60H v3 motors utilizing the newer 16/20 mm 6-spline output shaft.

Before ordering, please verify that your motor uses the 16/20 mm 6-spline shaft configuration.

The spline profile of this sprocket is as follows:

Widest spline diameter: 20.0mm

Narrowest spline diameter: 16.0mm

Compatibility testing on additional QS motor models is ongoing. At this time, this sprocket is sold specifically for QS165 60H v3 applications.

Features

Precision CNC machined

Hardened steel construction

Direct-fit 16/20 mm 6-spline design

Designed specifically for QS165 60H v3 motors

High-strength racing-grade construction

Includes retaining plate and mounting hardware

Suitable for electric motorcycles, karts, ATVs, and custom vehicle projects

Corrosion-resistant finish

Package Includes

One Amp 520SS13HT-16/20 sprocket

One retaining plate

Two mounting bolts

Specifications

Chain Size: 520

Teeth: 11

Spline Type: 16/20 mm 6-Spline

Material: Hardened Steel

Fits Motor: QS165 60H v3

SKU: Amp 520SS11HT-16/20

Condition: New

Every sprocket is made with high quality hardened steel with galvanized coating to resist rust and corrosion. All sprockets come complete with optional retainer clip and retainer clip screws.
