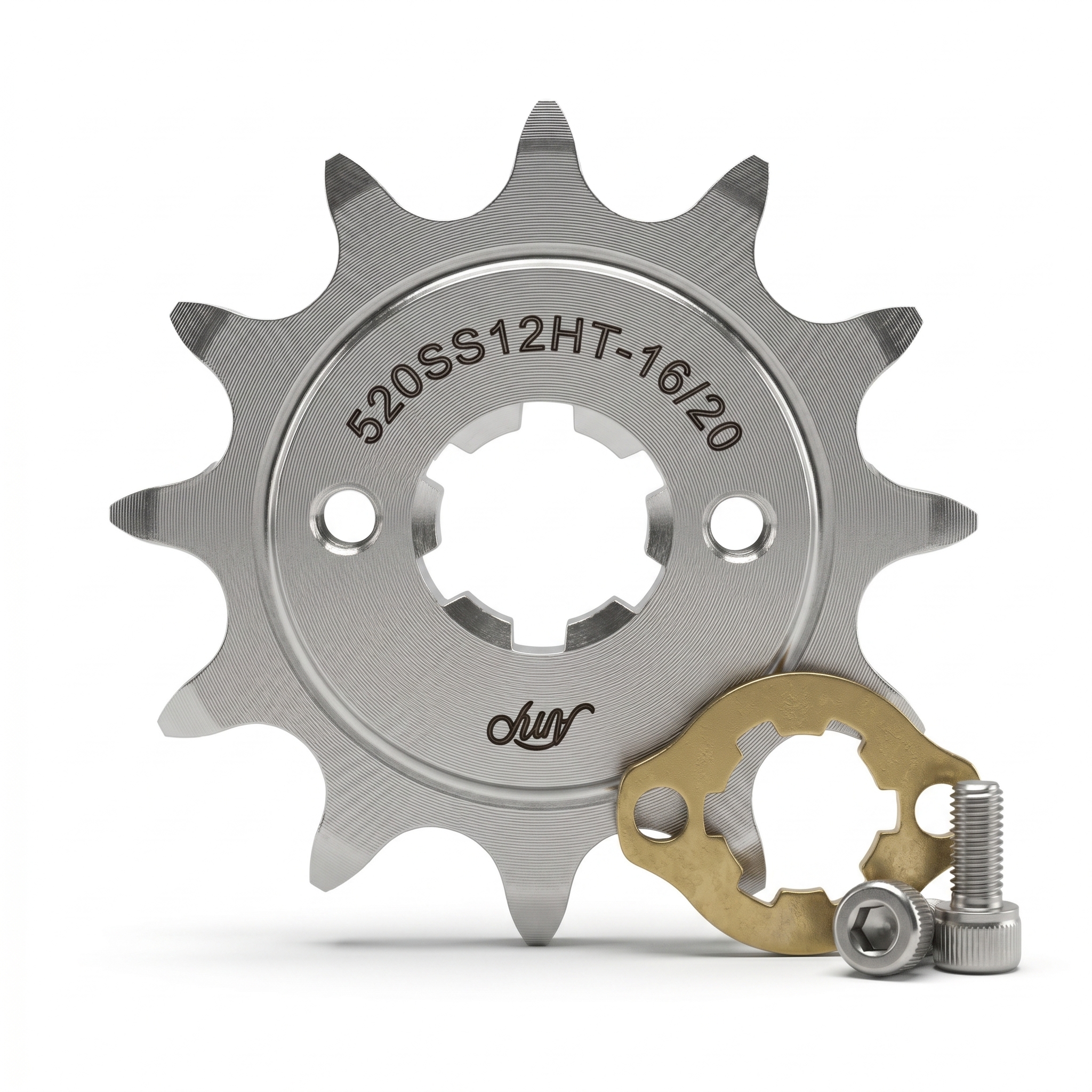

Amp 520SS12HT-16/20

Name: Amp 520SS12HT-16/20
SKU: Amp 520SS12HT-16/20
Price: 36.00 USD
Availability: InStock

$36.00

70 in stock

High Torque 520 12T Racing Sprocket

Designed specifically for the QS165 60H v3 gearbox motor with the newer 16/20 mm 6-spline output shaft.

Constructed from hardened steel for maximum durability and engineered for high-power electric motorcycle, kart, and ATV applications.

The Amp 520SS12HT-16/20 was developed specifically for the QS165 60H v3 gearbox motor utilizing the newer 16/20 mm 6-spline output shaft. This precision CNC-machined sprocket provides a direct-fit solution for riders looking for a high-quality alternative to factory sprockets.

Constructed from hardened steel and manufactured to strict tolerances, this sprocket is designed to withstand the demands of high-power electric motorcycle applications while providing long service life and reliable performance.

The 12-tooth configuration offers an excellent balance between acceleration and top speed, making it a popular choice for full-size electric dirt bike conversions and general-purpose riding.

Each sprocket includes the retaining plate and mounting hardware required for installation.

Developed based on direct feedback from the Electric Motorcycle Builds community.

70 in stock

At a glance

Chain size: 520
Tooth count: 12
Bore / interface: 16/20mm Spline

SKU: Amp 520SS12HT-16/20 Category: Sprockets

Description

IMPORTANT FITMENT NOTICE

This sprocket is engineered specifically for use with QS165 60H v3 motors utilizing the newer 16/20 mm 6-spline output shaft.

Before ordering, please verify that your motor uses the 16/20 mm 6-spline shaft configuration.

The spline profile of this sprocket is as follows:

Widest spline diameter: 20.0mm

Narrowest spline diameter: 16.0mm

Compatibility testing on additional QS motor models is ongoing. At this time, this sprocket is sold specifically for QS165 60H v3 applications.

Features

Precision CNC machined

Hardened steel construction

Direct-fit 16/20 mm 6-spline design

Designed specifically for QS165 60H v3 motors

High-strength racing-grade construction

Includes retaining plate and mounting hardware

Suitable for electric motorcycles, karts, ATVs, and custom vehicle projects

Corrosion-resistant finish

Package Includes

One Amp 520SS13HT-16/20 sprocket

One retaining plate

Two mounting bolts

Specifications

Chain Size: 520

Teeth: 12

Spline Type: 16/20 mm 6-Spline

Material: Hardened Steel

Fits Motor: QS165 60H v3

SKU: Amp 520SS12HT-16/20

Condition: New

Every sprocket is made with high quality hardened steel with galvanized coating to resist rust and corrosion. All sprockets come complete with optional retainer clip and retainer clip screws.
